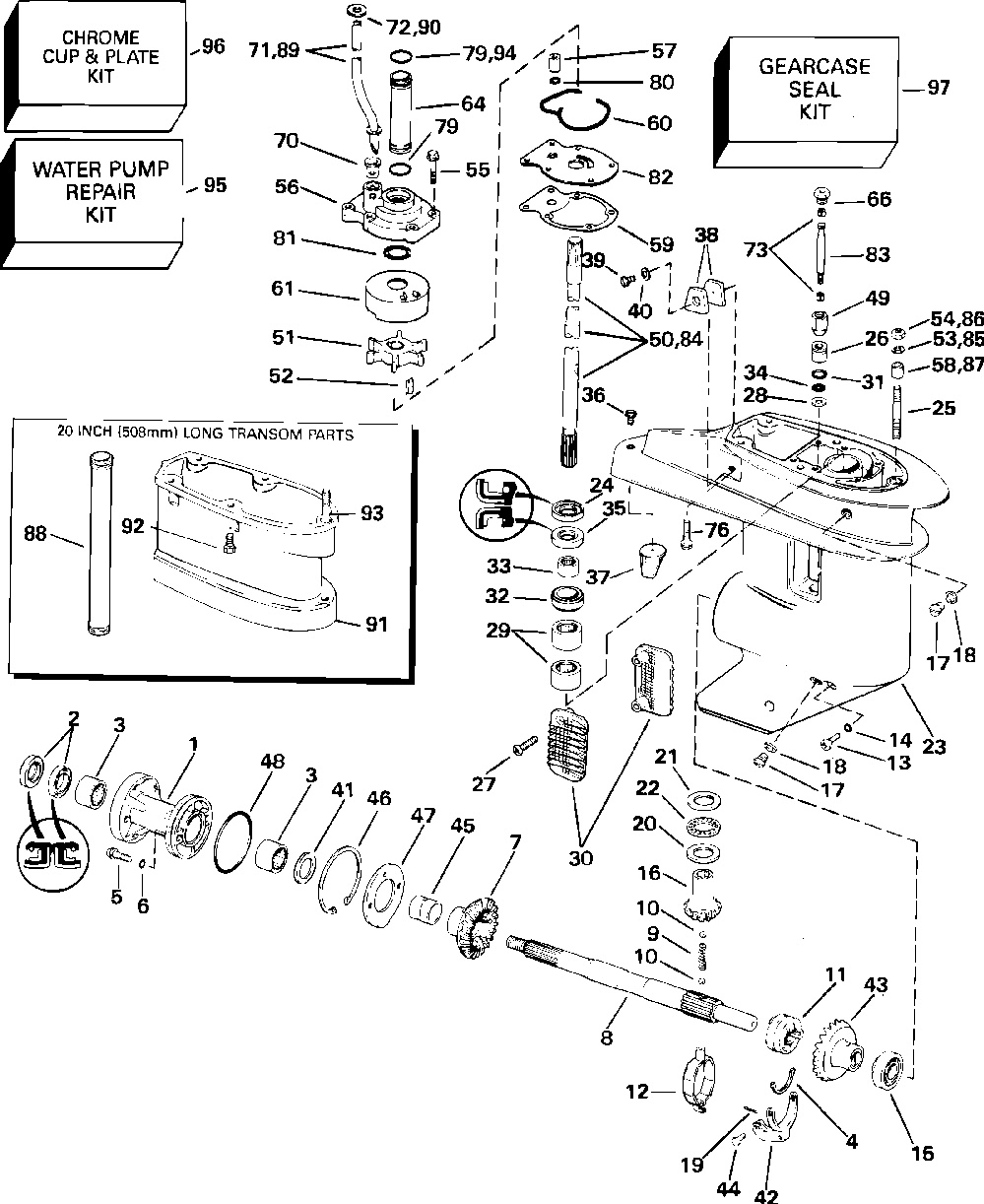

Редуктор

Johnson J25RTSOS
Johnson
#oem кодцена
0177223
Kit Ay 5" Ext ((optional. Not Shown.) )
0325541
Shift Rod-lng ((25rl, 30rl. Not Shown.) )
0325975
Rubber Mount ((25rl, 30rl. Not Shown.) )
0325974
Rubber Mount ((25rl, 30rl. Not Shown.) )
0330621
Gasket ((optional. Not Shown.) )
1
5008160
Корпус
2
0321453
Oil Seal ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)
3
0437288
Подшипник игольчатый
4
0328311
Зажим
5
0319743
Sst Screw
6
0332584
Washer 5pk ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)
7
0327655
Gear, Rev 13:28
8
0439143
Вал гребново винта
9
0327070
Пружина
10
0316506
Ball Detent (005 Per Pack)
11
0337020
Рычаг переключения
12
0390023
Yoke & Connector
13
0308376
Винт
14
0332584
Washer 5pk ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)
15
0386186
Roller Brg Ay
16
0351147
Gear, Pinion
17
0307551
Drain Fill Plg 10p ((contents Of Gearcase Seal Kit.) ) (010 Per Pack)
18
0311598
Washer-10 Pk (010 Per Pack)
19
0303049
Шплинт
20
0330441
Упорная шайба
21
0327716
Thrust Washer-upr
22
0388027
Thrust Brg Ay
23
0434030
Kit, G-case Hsg
24
0332261
Oil Retainer ((contents Of Gearcase Seal Kit.) )
25
0320173
Ff Stud
26
0326361
Втулка
27
0325539
Screw (005 Per Pack)
28
0321738
Washer ((contents Of Gearcase Seal Kit.) )
29
0437288
Подшипник игольчатый
30
0336206
Screen, Water Inlet
30
0336202
Inlet Screen ((optional.) )
31
0303347
O Ring ((contents Of Gearcase Seal Kit.) )
32
0322018
Bearing Hsg Dshaft
33
0386473
Подшипник
34
0301877
O Ring ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)
35
0321928
Oil Ret Brg Hsg Ds ((contents Of Gearcase Seal Kit.) )
36
0329217
Винт
37
5008161
Kit Ay, Trim Tab
38
5007582
Kit Ay, Anode
39
0333677
Винт
40
0304454
Стопорная шайба
41
0319684
Ff Thrust Washer
42
0337019
Рычаг
43
0392475
Gear & Bushing, Fwd
44
0302504
Штифт
45
0319635
Ff Bushing Rev Gr
46
0319747
Ff Retaining Ring
47
0319746
Ff Retainer Plate
48
0338518
O-ring ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)
49
0331465
Nut, Shift Connctr
50
0351148
Вертикальный вал 15"
51
0395289
Imp & Key ((contents Of Water Pump Repair Kit.) )
52
0344470
Key, Impeller-blk ((contents Of Water Pump Repair Kit.) )
53
0301250
Шайба
54
0306422
Гайка
55
0328725
Screw ((contents Of Water Pump Repair Kit.) )
56
0393632
Imp Hsg & Bush Ay ((contents Of Water Pump Repair Kit.) )
57
0328754
Втулка
58
0319785
Втулка
59
0325537
Gasket ((contents Of Gearcase Seal Kit. Contents Of Water Pump Repair Kit.) )
60
0328753
Seal ((contents Of Gearcase Seal Kit. Contents Of Water Pump Repair Kit.) )
61
0328773
Cup-chrome (wr Models )
61
0328751
Cup, Imp Hsg ((contents Of Water Pump Repair Kit.) )
66
0325624
Connctr, Shft Rod
70
0302497
Grommet ((contents Of Water Pump Repair Kit.) ) (005 Per Pack)
71
0395339
Wtr Tube Ay ((25r, 30r.) )
72
0330658
Шайба
73
0325625
Keeper (005 Per Pack)
76
0328333
Винт
79
0311338
O Ring ((contents Of Gearcase Seal Kit. Contents Of Water Pump Repair Kit.) )
80
0301877
O Ring ((contents Of Water Pump Repair Kit.) ) (005 Per Pack)
81
0554545
O Ring ((contents Of Gearcase Seal Kit. Contents Of Water Pump Repair Kit.) )
82
0328772
Plate (wr Models )
82
0328755
Plate ((contents Of Water Pump Repair Kit.) )
83
0331479
Shift Rod-lower
84
0351149
Driveshaft, 20"
85
0306470
Lockwasher ((optional.) )
86
0306422
Nut ((optional.) )
87
0319785
Bushing ((optional.) )
88
0326693
Spacer, Long ((25rl, 30rl.) )
89
0395340
Wtr Tube Ay ((25rl, 30rl.) )
90
0330658
Washer ((25r, 30r. 25rl, 30rl.) )
91
0392967
Ext, Stud & Screw ((optional.) )
92
0339823
Screw ((optional.) )
93
0320173
Ff Stud ((optional.) )
94
0311338
O Ring ((contents Of Gearcase Seal Kit. Contents Of Water Pump Repair Kit.) )
95
0393630
Wtr Pump Kit
97
0396351
Комплект сальников редуктора
