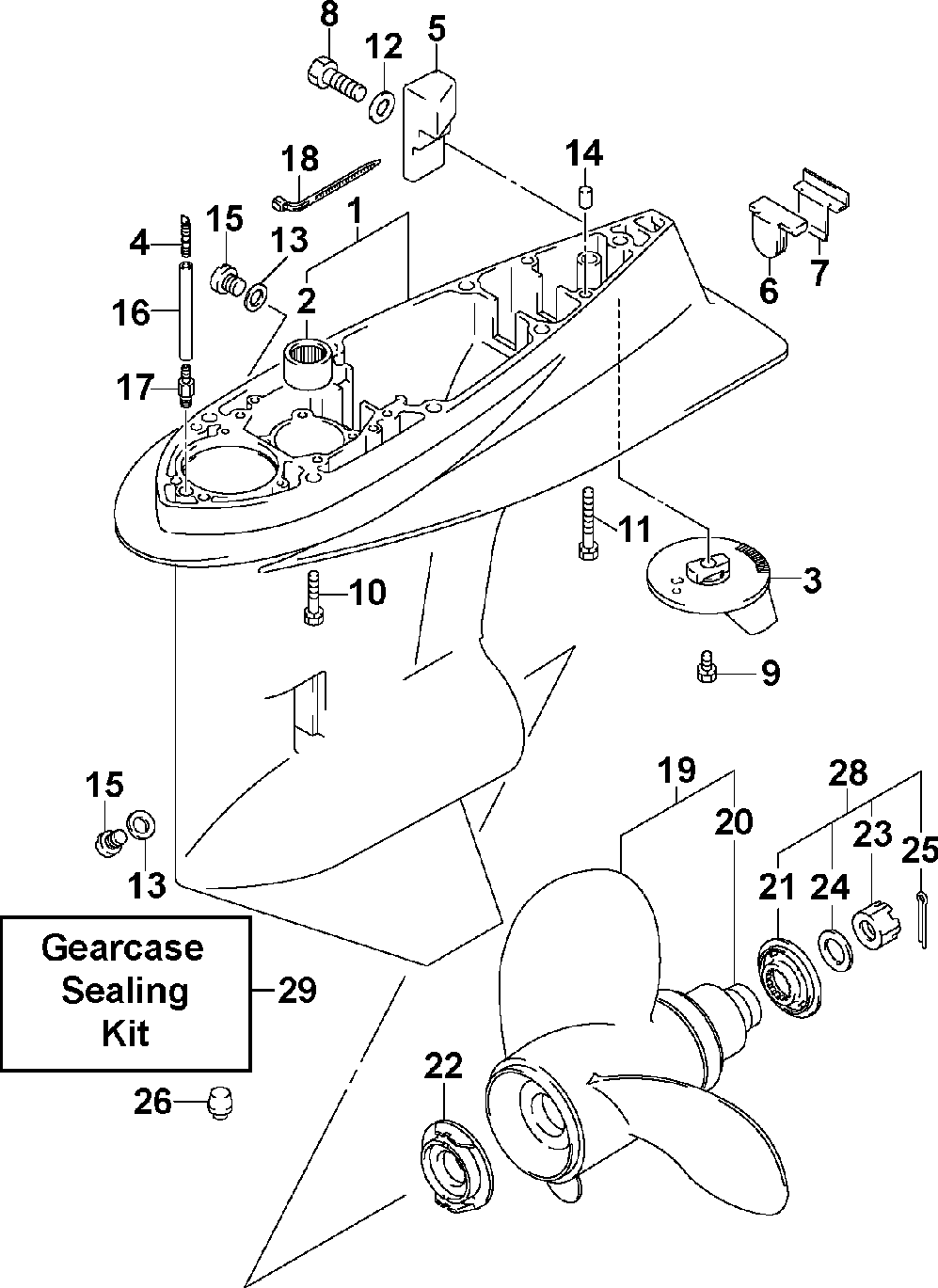

Редуктор

Johnson BJ140PL4SRS
Johnson
#oem кодцена
1
5036626
G-case & Brg, 140hp (new P/n For 2004 )
2
5032541
Bearing, Pinion
3
5032929
Trim Tab 60-140std (new P/n For 2004 )
4
5030906
Соединение
5
5032930
Anode, Gear Case
6
5037215
Уплотнение
7
5032545
Plate, Exh Seal
8
5030338
Болт М6x12
9
5034400
Bolt (8x22mm) (new P/n For 2004 )
10
5034788
Bolt, (l55)
11
5030401
Bolt, 10x80
12
5030430
Washer, 6.5x15x1
13
5030071
Gasket (washer) (010 Per Pack)
14
5030511
Штифт
15
5030094
Plug, Drain, 10x7.5
16
5030564
Hose (cut To Length From P/n 5033622 )
16
5030564
Hose (cut To Length From P/n 5033622 )
17
5030568
Ниппель
18
5031118
Tie Strap
19
0777024
Prop,sst 13-7/8x17 (optional, Stainless Steel (rh) )
19
0777025
Prop,sst 13-7/8x19 (optional, Stainless Steel (rh) )
19
0777026
Prop,sst 13-7/8x21 (optional, Stainless Steel (rh) )
19
0777027
Prop, Ss Rh 23" (optional, Stainless Steel (rh) )
19
0777028
Prop, Ss Rh 25" (optional, Stainless Steel (rh) )
19
5033322
Prop,al 13-1/2x15 (optional, Aluminum (rh) )
19
5033323
Prop, Al 14x17 (optional, Aluminum (rh) )
19
5033324
Prop,al 14x19 (optional, Aluminum (rh) )
19
5033325
Prop, Al 14x21 (optional, Aluminum (rh) )
19
5033326
Prop, Al 14x23 (optional, Aluminum (rh) )
20
5033992
Bushing, Propeller (optional )
21
5034638
Prop Nut Spacer (new P/n For 2004 )
22
5033954
Stopper, Prop Bush
23
5030422
Гайка винта гребного
24
5030441
Шайба
25
5030087
Cotter Pin (010 Per Pack)
26
5032685
Plug, Water Tube (optional )
28
5033854
Kit, Propeller Nut (optional )
29
5033922
Seal Kit, Gearcase (optional )
