ЭЛЕКТРИКА

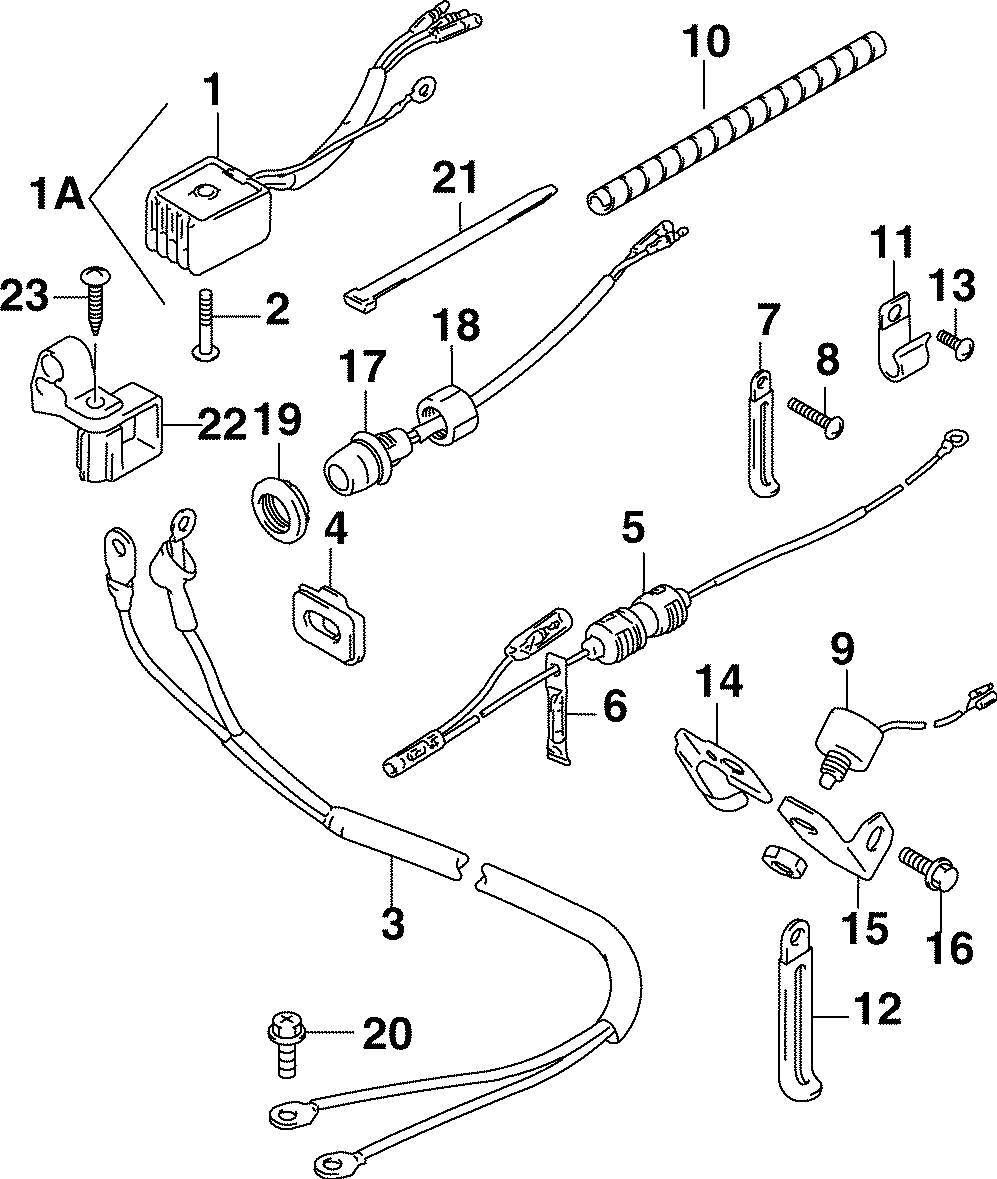

Johnson J10TBL4SR (M and F)
Johnson
#oem кодцена
1
5030356
Rectifier Ay (te, Tb & E Models Only )
2
5033301
Screw (te, Tb & E Models Only )
3
5032683
Cable Ay,battery (te, Tb & E Models Only )
4
5033148
Grommet,cable (te, Tb & E Models Only )
4
5035613
Grommet (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
5
5032043
Case Ay,fuse (te, Tb & E Models Only )
6
5031911
Fuse, 25a
7
5030135
Clamp, L:65
8
5033302
Винт
9
5033158
Переключатель в сборе
11
5033031
Clamp, L:29.5
12
5032824
Clamp;l:62 (te, Tb & E Models Only )
13
5031798
Винт
14
5030824
Actuator, (clip)
15
5033159
Bracket, Neutral Sw
16
5030989
Болт
17
5032044
Switch Ay,start (te, Tb & E Models Only )
18
5031828
Nut,m14x1.5x13 (te, Tb & E Models Only )
19
5032998
Plug, 15x19x2
1A
5034738
Rectifier Ay (not Shown )
20
5030013
Винт
21
5030589
Clamp(l:125) (te, Tb & E Models Only )
22
5034070
Clamp,cable (j10el4src Model Only, Not Shown )
23
5034083
Screw,cable Clamp (j10el4src Model Only, Not Shown )
