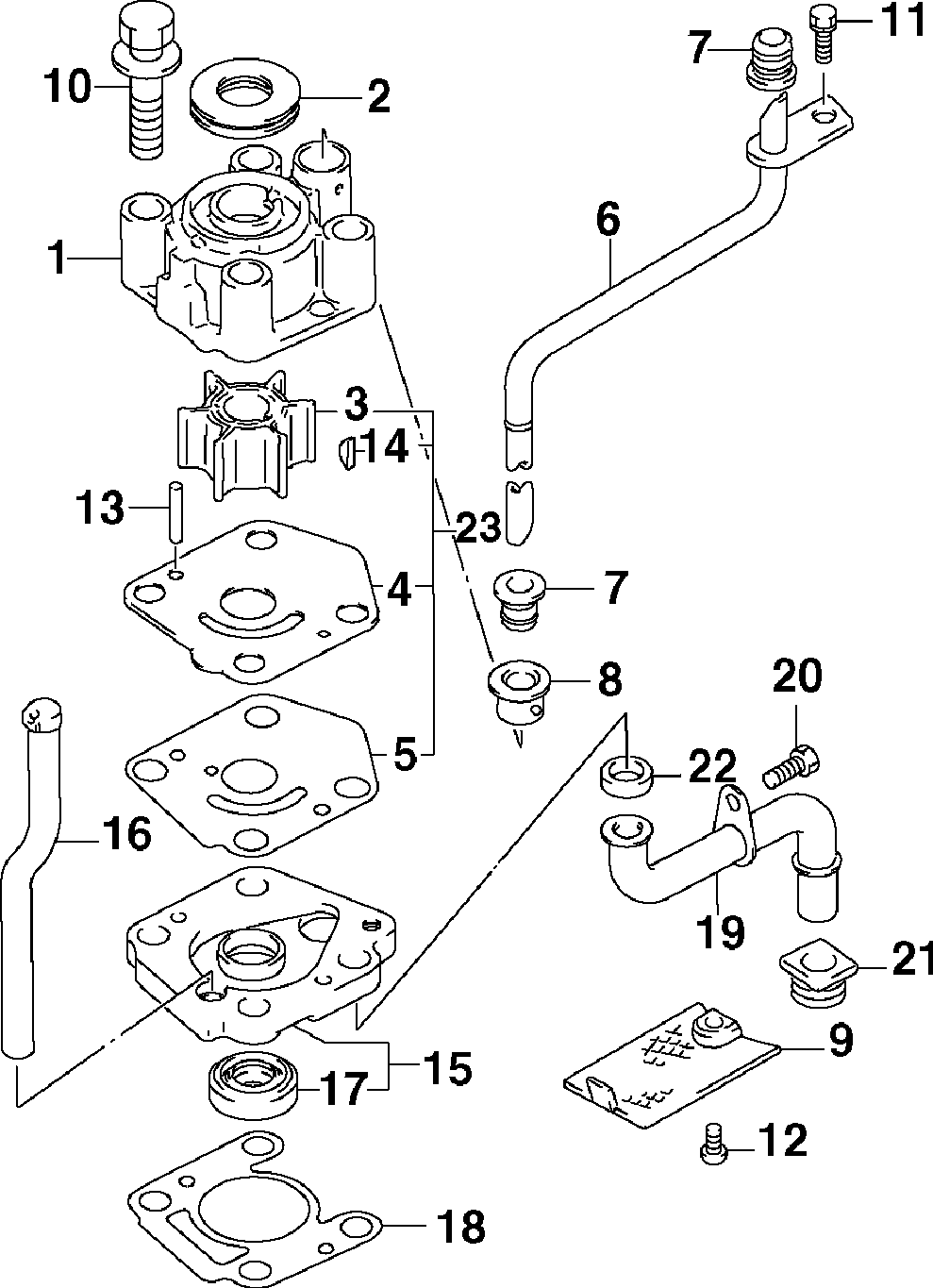

ВОДЯНОЙ НАСОС

Johnson J10TEL4SR (R and F)
Johnson
#oem кодцена
1
5033107
Hsg, Water Pump
2
5033108
Grommet, Pump Case
3
5033112
Импиллер
4
5033114
Plate, Wtr Pump
5
5035603
Прокладка
5
5035603
Gasket (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
6
5033118
Tube, Water(s)
6
5033118
Tube, Water(s) (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
6
5033117
Tube, Water(l)
6
5033117
Tube, Water(l) (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
7
5033119
Grommet, Water Tube
7
5035606
Grommet (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
8
5033120
Bush, Water Pump
8
5035607
Bushing (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
9
5033121
Filter, Water
10
5032766
Bolt, 8x55
11
5030035
Болт 6x15
12
5030409
Screw, 6x10
13
5032994
Pin, 4x19
14
5033113
Шпонка
15
5033109
Кожух
15
5035608
Housing Ay (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
16
5033111
Drain, Water Inlet
16
5033111
Drain, Water Inlet (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
17
5033014
Seal, Oil, 12x26x10
18
5033110
Прокладка
19
5033116
Tube, Water Inlet
20
5032758
Bolt, 6x9
21
5035610
Уплотнитель резиновый
21
5035610
Grommet (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
22
5033019
Grommet, 10x14x4.0
22
5035611
Grommet (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
23
5033106
Kit, Water Pump (optional )
